디스플레이 격자선




NVIDIA® nView™ Display Gridlines provide the easiest way to maximize your desktop space by dividing up your monitor into separate regions for all of your applications.

Below is a typical Microsoft® Windows® desktop. As you can see, this user currently has four windows open. The application windows are overlapping, and there is wasted desktop space.

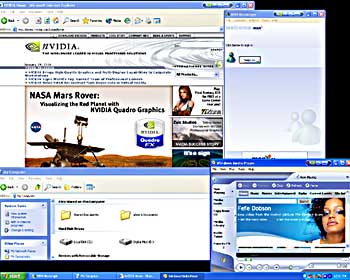

  Figure 1
  Figure 1. Multiple applications open on a typical Windows desktop.


In the past, it took valuable time resizing individual application windows in order to fit them all on a desktop without any unused space. Now with the nView Display Gridlines tool you can quickly and easily utilize the entire available desktop space with the click of a button.

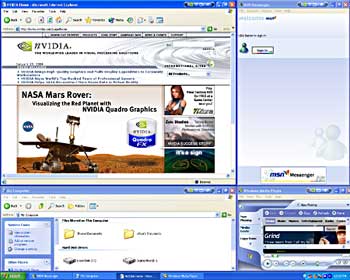

  Figure 2
  Figure 2. The nView Display Gridlines divide the desktop into separate regions, to efficiently utilize the available area.

To enable Display Gridlines, follow these steps:

1. Launch the nView Desktop Manager from the Windows control panel.

2. Make sure the nView Desktop Manger is set to Enabled.

3. Browse to the User Interface tab.

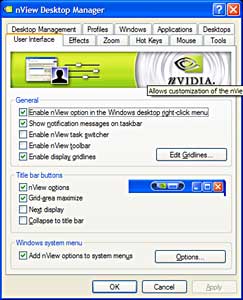

  Figure 3
  Figure 3. nView Desktop Manager Control Panel


4. Click the checkbox Enable display gridlines and then click the button Edit Gridlines.

5. The Display Gridlines user interface will now overlay on top of your screen. To create new grid areas, simply click your mouse at one point and drag to create a line. You can also move the lines by clicking on them and dragging, or you can delete them by clicking and pressing the delete button.

NOTE: NVIDIA® GeForce™ GPUs can create up to four display grids, while NVIDIA Quadro® GPUs can create up to nine display grids.

  Figure 4
  Figure 4. Display Gridlines User Interface


6. Once you have decided on your layout, you can view the display grid names by clicking Show Grid Name.

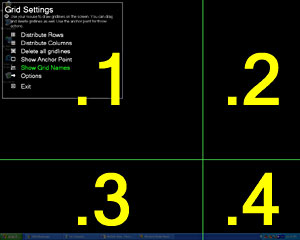

  Figure 5
  Figure 5. Show Grid Names


7. To configure your grids to interact with windows and dialog boxes, click on Options.

8. Click on the option nView Maximize.

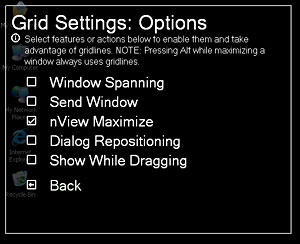

  Figure 6
  Figure 6. Grid Options


9. Now click the Back button and then the Exit button.

10. To use the nView Maximize button, make sure you checked Grid-area maximize from the User Interface tab. If you have, there will be an additional rectangular button in the title bar area for nView functionality.

  Figure 7
  Figure 7. nView Title Bar Options


11. Now when you click the nView Maximize button on all of your application windows, they will maximize to each display grid region, efficiently using your entire desktop space and allowing you to see all application windows simultaneously.

  Figure 8
  Figure 8. Display Grids in action.
